Create a Template

Prerequisites​

Obviously to work on Excel exports, you need to have Excel installed on your computer. You can use any version of Excel, but we recommend to use the latest version.

Create a new template file​

Usually, when implementing a new Excel export in your software, you know how your Excel file should look like.

You can create a new Excel file and start to build from it. You can have a reference file opened as well to copy/paste some cells.

Here is an example of what we would like to achieve, it's a very basic list of data with a formatted header and title :

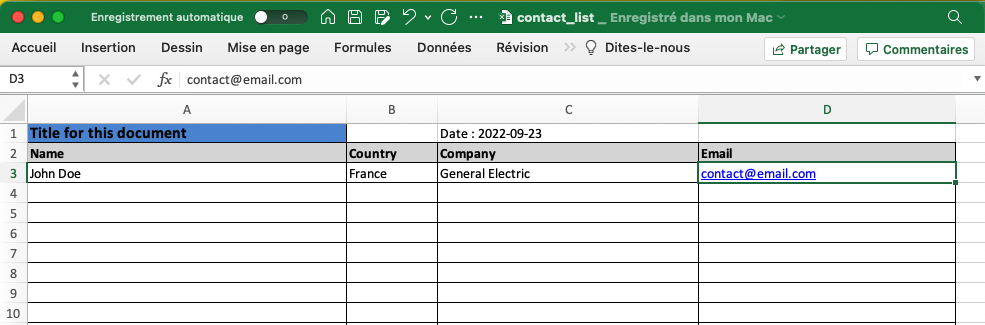

Excel export example

Start by creating worksheets​

The Excel template must contain a worksheet called temp, and other worksheets named as you want, you will refer the other worksheets in the JSON data.

The JSON to XLSX tool allows you to fill-in several worksheets at once if needed.

Excel template worksheets

This temp worksheet will be used to store mini templates that will be used to generate the final Excel file (in this case, lines of a table).

Create the main layout of the Excel template file​

Use the main worksheet to prepare the Excel formatting you need, here contacts

The main layout contains all data that is not a list, with formatting, but that could be dynamic.

To add dynamic data to the layout, use variable names that are in between superior and inferior signs, like this : <myVariable>

Those variables will be replaced upon generation by the values in the JSON data.

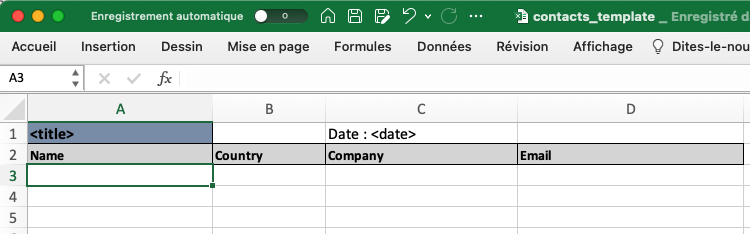

Main layout of the template

Create the mini template​

Use the temp worksheet to create the mini template that will be used for each contact line.

For creating a line, it is usefull to copy-paste the header from contacts worksheet to temp so you know which column you are manipulating.

Here you need to detail each cell with dynamic data that will be replaced by the JSON data, using the same formatting as before : <myVariable>

Afterwards, you need to create a name range for the line. This is documented here on microsoft website . The easiest way is to select the cells of the line, and click on top left part (see prinstcreen below) to define the name of the name range, here contact_line.

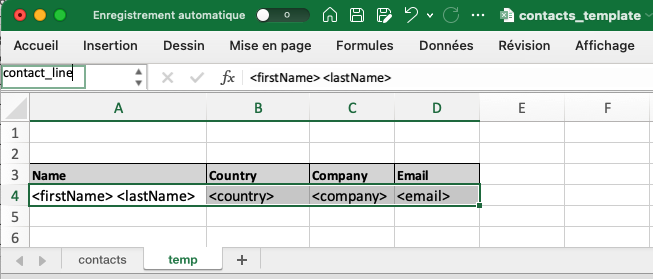

Contact line template

When processing JSON to create the lines, JSON to XLSX will use the name range to copy-paste the line and integrate the JSON data in it.

Congratulations, your template is ready !

You can download the sample template here: contacts_template.xlsx
